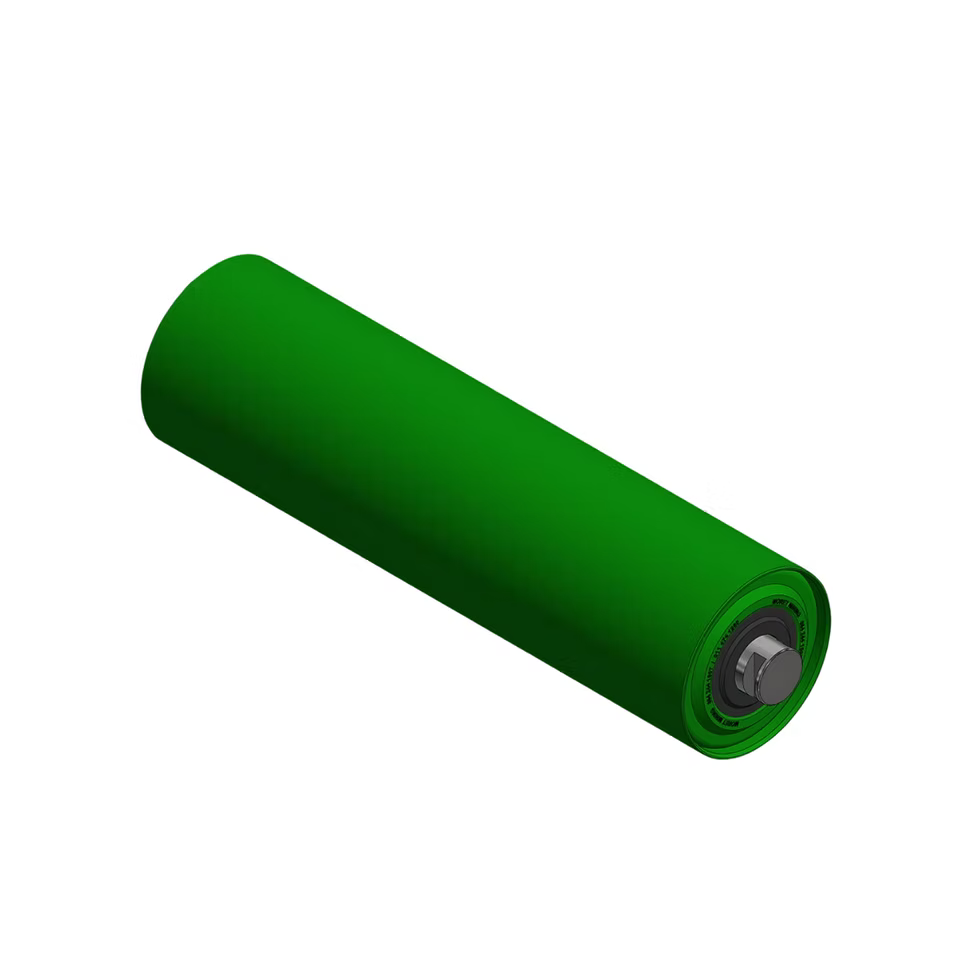

This Type Load roller is engineered for high-capacity industrial applications, specifically designed to support 1200 mmbelt widths. Built with a robust 4 mm thick steel shell and a 152 mm diameter, it provides the structural integrity required for heavy material handling.
Key Features
Rugged Construction: Features a precision-machined steel shell and shaft, finished with a protective paint coating for enhanced durability and corrosion resistance.
Precision Rotation: Equipped with high-quality BB1B 420205 bearings (25 mm bore) and dynamically balancedto ensure low rolling resistance and extended service life.
Standardized Fit: Designed for seamless integration into existing systems with a Type H shaft end (12 mm fit width) and a total shaft length of 494 mm.
Optimized Dimensions: Features a 450 mm tube length and a maximum eccentricity of 0.2 mm, ensuring smooth operation and minimal vibration for specialized mining or industrial conveyor frameworks.
Specifications at a Glance:
Shell: 152 mm Ø × 4 mm Wall × 450 mm Length
Shaft: 25 mm Ø (Bearing) / 18 mm Ø (Fitting)
Application: Heavy-duty bulk handling and mining conveyors (Load Side).
