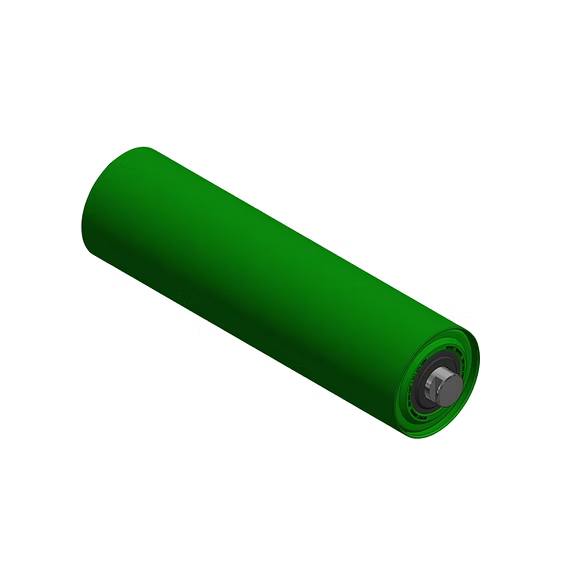

This Type Return roller is engineered for high-capacity industrial applications, specifically designed to support 1400 mm belt widths. Built with a robust 4 mm thick steel shell and a 159 mm diameter, it provides the structural integrity required for heavy material handling.
Key Features
Rugged Construction: Features a precision-machined steel shell and shaft, finished with a protective paint coating for enhanced durability and corrosion resistance.
Precision Rotation: Equipped with high-quality BB1B 420205 bearings (25 mm bore) to ensure low rolling resistance and extended service life.
Standardized Fit: Designed for seamless integration into existing systems with a Type H shaft end (10 mm fit width) and a total shaft length of 838 mm.
Optimized Dimensions: Features an 800 mm tube length, providing reliable support for the return belt in standard and mining conveyor frameworks.
Specifications at a Glance:
Shell: 159 mm Ø × 4 mm Wall × 800 mm Length
Shaft: 25 mm Ø (Bearing) / 18 mm Ø (Fitting)
Application: Heavy-duty bulk handling and mining conveyors (Return Side).
