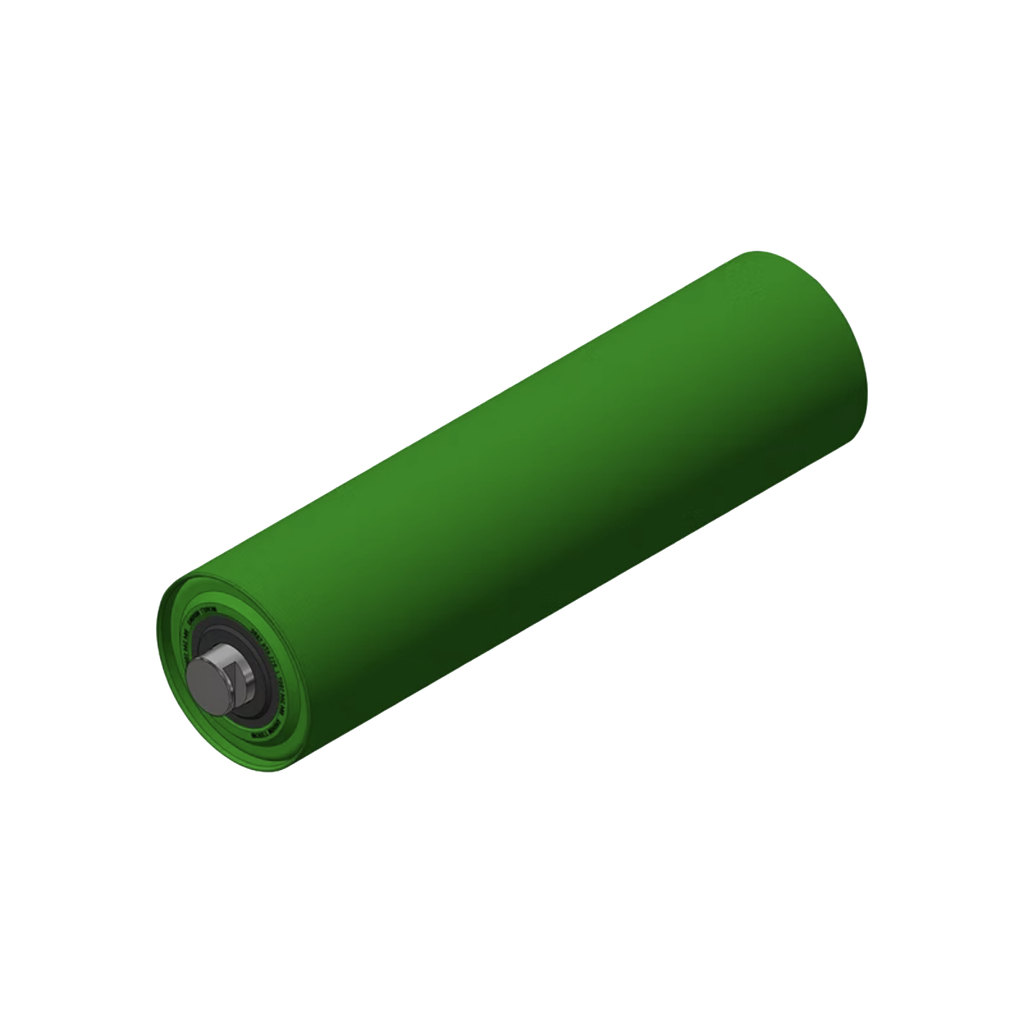

This Type Return roller is engineered for high-capacity industrial applications, specifically designed to support 1800 mm belt widths. Built with a robust 5.4 mm thick steel shell and a 194 mm diameter, it provides the structural integrity required for heavy material handling.
Key Features
Rugged Construction: Features a precision-machined steel shell and shaft, finished with a protective paint coating for enhanced durability and corrosion resistance.
Precision Rotation: Equipped with high-quality 6308 TN9 C4 bearings (40 mm bore) to ensure low rolling resistance and extended service life under high-clearance requirements.
Standardized Fit: Designed for seamless integration into existing systems with a Type H shaft end (12 mm fit width) and a total shaft length of 2042 mm.
Optimized Dimensions: Features an extended 2000 mm tube length, ensuring stable belt support across wide-span industrial conveyor frameworks.
Specifications at a Glance:
Shell: 194 mm Ø × 5.4 mm Wall × 2000 mm Length
Shaft: 40 mm Ø (Bearing) / 32 mm Ø (Fitting)
Application: Heavy-duty bulk handling and mining conveyors (Return Side).
